WOOD Garage Doors

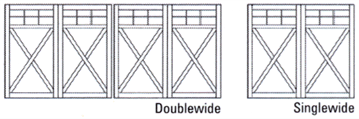

Carriage House Doors, The Presidential Series - Washington Buren

back

Standard features:

Made of woods resistant to insects and decay
Available in different wood textures & patterns
Equiped for remote control overhead garage door operation, opening and closing as a sectional garage door, even when exterior hardware may suggest hinged side or slide openings
Numbered and registered at the factory to facilitate the ordering of accessories, repair or replacement parts
A spectacular design complement to wood entry doors and millwork accents
Rectangular or Arched insulated lites as shown below
Pre - stain conditioner or prime painted (prime painted for Hemlock only)
Ready to stain or paint
Fully insulated

Window Specification:
32-lite colonial top section
Double strength glass (1/2" insulated glass optional)
Custom cedar window grilles.

Optional futures :

Custom panel arragements, send us your designs
Custom trim options
Custom arched radius top section or other special lite designs
Solid wood top selection
Custom woods available
Classic ornamental iron hinges and hand pulls in black wrought iron

SPECIFICATIONS:

2 11/16'' door thickness

Matching wood jamb weather seal

U-shaped vinyl bulb weather seal

Interior slide locks

STANDARD DOOR SIZES
8', 9', 10', 12', 16', 18' Wide 7', 7'6'', 8' High
Custom and commercial sizes available

TRACK
Vertical Tracks:
16 gauge, 1 1/2''x 2 3/4'' adjustable angle
Horizontal Tracks:
14 gauge with 2'' x 2'' reinforced angle

HARDWARE
14 gauge (double end hinges over 9' wide)

GLASS LITE
1/2'' double strength insulated glass

ROLLERS

Nylon 10-ball bearings

Long stem over 9' wide

CABLE
1/8'' Cable - Aircraft quality

TORSION SPRINGS
Minimum 10 000 cycle life, 2 springs

STRUTS
1-3'' strut per section

OPERATOR PREP
Operator bracket shipped with door

WOOD CHOICES
You will be able to specify wood species, board texture, finish and size from our standard selection. Custom wood species available upon request.
Western Red Cedar
Composed mostly of heartwood, these trees are naturally insect repellent. The wood has a fine texture, is highly decay resistant and finishes well. It can be specified with tight knots or no knots at all (clear). Color of the lumber can vary. A single board might exhibit chocolate to blonde coloring - part of the unique character of your door.
Western/Mountain Hemlock
This wood exhibits a very fine texture and is highly decay resistant. It is recommended for doors that will be painted rather then stained. Dark streaks are characteristic of the lumber. These are often unseen because the wood can be easily painted.

CEDAR

HEMLOCK

WARRANTY
One Year Limited Warranty: If any of the parts or materials used in manufacturing your Presidential Series door become defective within one year of date of purchase, your door will be replaced or repaired by the manufacturer at its option. All doors must be properly sealed and maintained in accordance with the one year limited warranty.
